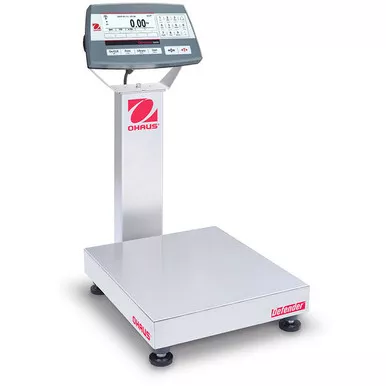

Bench Scale, D52P50RTR1
OverviewThe OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options – the Defender 5000 is designed to simplify demanding industrial and commercial applications. ApplicationsWeighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold) DisplayBacklit Liquid Crystal Display (LCD), 256 x 80 pixels OperationInternal power supply with power cord (included) or rechargeable battery (sold separately as an accessory) CommunicationEasy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock ConstructionABS plastic (TD52P) or stainless steel (TD52XW) indicator, 304-grade stainless steel platform with sand gray powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet Design FeaturesUser-configurable resolution up to dual range 15,000d/3,000e (25000d/5000d for NTEP), 150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, brightness adjustment, screensaver, auto tare. Specifications
| Maximum Capacity | 100 lb (50 kg) |
| Readability | 0.005 lb (2 g) |
| Readability (Certified) | 0.02 lb (10 g) |
| Platform Size | 14 in x 12 in (355 mm x 305 mm) |
| Legal for Trade | NTEP Certified; Measurement Canada Approved |
| Power | Rechargeable Battery (Not Included); AC Power (Included) |
| Battery Life | 20 Hours with Rechargeable Battery |
| Communication | Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory) |
| Dimensions | 19.3 in x 22.6 in x 12 in (491 mm x 574 mm x 305 mm) (LxHxW) |
| Display | Dot matrix LCD with white LED backlight |
| Net Weight | 24.3 lb (11 kg) |
| Outputs | 4 – 20mA; 2 In/4 Out digital I/O |
| Platform Construction | Stainless Steel |
| Protection Rating | Not Applicable |
| Second Scale Input | Not Applicable |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
