Orthodontic Wire Bending Pliers for Archwire Loop Forming

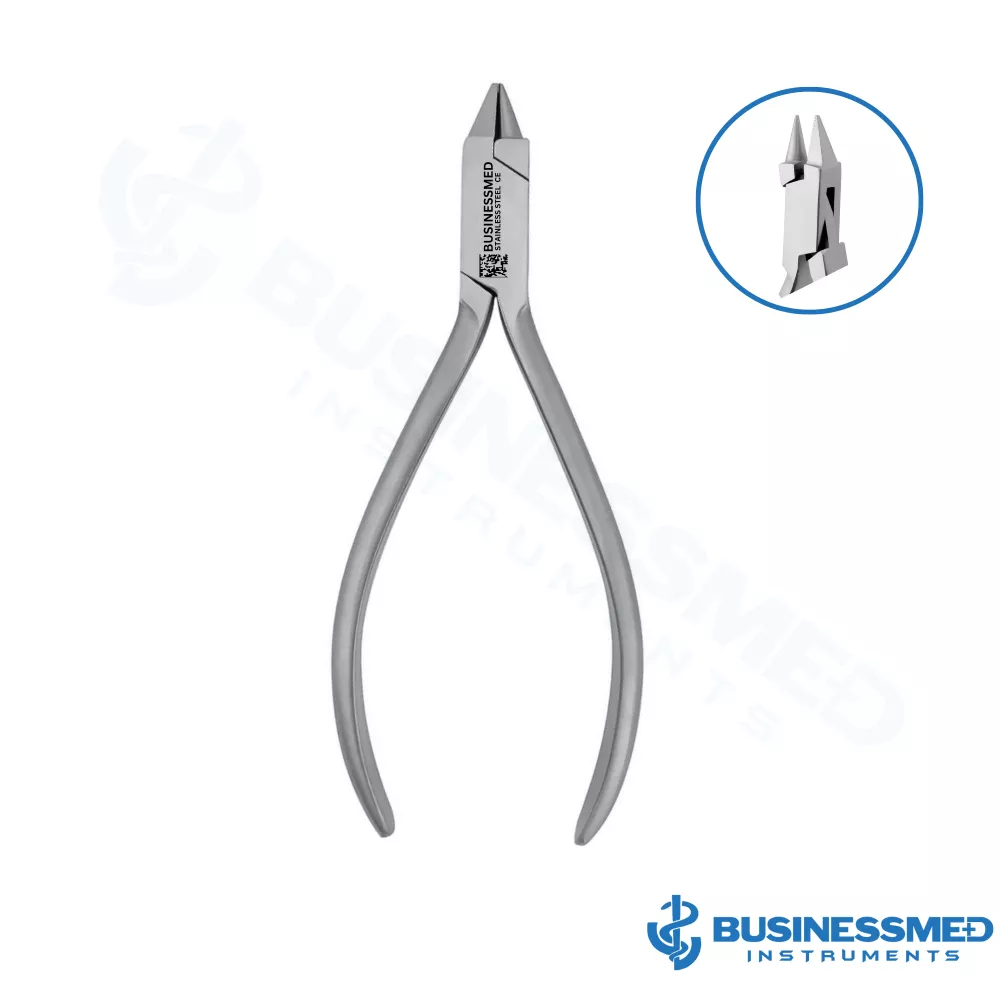

BusinessMed® 139 Bird Beak Pliers is an orthodontic wire bending and loop forming plier originally designed by Dr. Edward Hartley Angle for orthodontic archwire bending, helical and omega loop forming, clasp wire fabrication, and retainer labial bow contouring across Orthodontics, Dentofacial Orthopedics, Prosthodontics, and Dental Laboratory Technology.
139 Bird Beak Pliers contours, bends, and manipulates round stainless steel archwires, rectangular stainless steel archwires, beta-titanium TMA wires, and orthodontic clasps and auxiliary springs to shape precision activation loops, stop bends, and appliance retention frameworks during active orthodontic alignment and retainer fabrication.
139 Bird Beak Pliers is crafted from vacuum-hardened AISI 440A German stainless steel (54–58 HRC) to preserve beak geometry and edge alignment under repetitive wire-forming loads. The Bird Beak Pliers 139 is reusable and autoclavable, and is certified to international medical device quality standards. Each instrument undergoes validated passivation to ensure robust resistance to chemical oxidation and pitting across central sterile reprocessing cycles. The instrument is backed by a Comprehensive Lifetime Warranty against manufacturing defects.
Asymmetrical Beak Architecture and Loop Forming Mechanism
The dual-jaw architecture couples a 1.0 mm tapered cone with an opposing flat pyramid, allowing seamless transition between gradual curve forming and sharp right-angle activation bends. Smooth hand-polished working surfaces distribute mechanical strain along the wire’s neutral axis, preventing micro-notch fractures while the reinforced box lock joint eliminates jaw deflection under .030″ wire torque.
Technical Specifications
| Attribute | BusinessMed Specification |
|---|---|
| Manufacturer / Brand | BusinessMed Instruments® |
| Author / Inventor | Dr. Edward Hartley Angle |
| Instrument Type | 139 Bird Beak Pliers (Angle Wire Bending & Loop Forming) |
| Product Type | Orthodontic Wire Bending and Loop Forming Pliers |
| Product Category | Dental & Orthodontic Instruments |
| Sub-Category | Orthodontic Pliers / Wire Bending Pliers |
| Orthodontic Discipline | Orthodontics, Dentofacial Orthopedics, Prosthodontics, Dental Laboratory Technology |
| Procedural Indication | Orthodontic Archwire Bending, Helical and Omega Loop Forming, Clasp Wire Fabrication, Retainer Labial Bow Contouring |
| Anatomical Target | Round Stainless Steel Archwires, Rectangular Stainless Steel Archwires, Beta-Titanium TMA Wires, Orthodontic Clasps and Auxiliary Springs |
| Design/Shape | Dual Asymmetrical Beak Assembly with One Conical Round Beak and One Pyramidal Flat Beak, Smooth Non-Serrated Working Surfaces, Precision Box Lock Joint Body, and Ergonomic Non-Slip Grip Handles |
| Geometry | Straight Longitudinal Operating Axis with Parallel-Closing Opposing Beaks and Progressive Tapered Curvature |
| Plier Pattern | 139 Bird Beak Pattern (Angle 139 Wire Bending) |
| Plier Function | Wire Bending, Loop Forming, and Archwire Contouring |
| Beak Configuration | Asymmetrical Dual Beaks Comprising One Round Conical Beak and One Flat Pyramidal Beak |
| Beak Profile | Smooth Non-Serrated Working Surfaces Designed to Prevent Archwire Nicking, Notching, and Stress Concentration |
| Beak Orientation | Straight Longitudinal Approach Aligned with Plier Body |
| Wire Compatibility Range | Round and Rectangular Orthodontic Wires Up to .030″ (0.76 mm) Diameter |
| Cutting Edge Material | Non-Cutting Working Beaks (Standard Stainless Steel Working End) |
| Joint Type | Precision Box Lock Joint Body Without Ratchet |
| Working End Detail | Round Conical Beak for Uniform Radius Loop Forming Paired with Pyramidal Flat Beak for Sharp Right-Angle Bends |
| Handle Type | Ergonomic Textured Grip Handles |
| Handle Spring | Springless Manual Return |
| Overall Length | 135 mm (5.3 Inches) |
| Material Grade | AISI 440A German Stainless Steel |
| Material Composition | German Surgical-Grade Stainless Steel |
| Finish | Satin / Non-Reflective |
| Passivation | Validated Protocol (Advanced Corrosion Resistance) |
| Certifications | ISO 13485, CE, FDA, NMPA |
| Sterility | Non-Sterile |
| Reusable | Yes (Autoclavable & Sterilizable) |
| Warranty | Comprehensive Lifetime Warranty |
Clinical Activation Geometry and Wire Bending Standards
In clinical wire forming protocols, right-angle activation bends are formed up to 90° against the flat pyramidal beak, while helical and omega loops are contoured around the 1.0 mm conical tip across archwires up to .030″ (0.76 mm) diameter to deliver controlled, physiologic orthodontic force vectors.
Clinical Uses and Applications
- Executing orthodontic archwire bending across round and rectangular wires to establish customized dental arch forms.
- Performing helical and omega loop forming in space closure archwires for calibrated tooth retraction.
- Conducting clasp wire fabrication for custom Adams clasps and retentive framework arms in dental appliances.
- Executing retainer labial bow contouring and canine loop shaping for removable orthodontic retainers.
- Bending acute right-angle activation steps and molar cinch-back stops in stainless steel archwires.
- Adjusting beta-titanium TMA auxiliary springs to calibrate gentle root uprighting and rotation moments.
- Placing second-order artistic tip and third-order torque modifications in finishing archwires.
- Modifying clasps and retentive framework arms on removable partial prosthodontic appliances.
Frequently Asked Questions
Q: What wire sizes and configurations are compatible with Bird Beak Pliers 139?
Bird Beak Pliers 139 accommodates round and rectangular stainless steel archwires, beta-titanium TMA wires, and clasp wires up to .030″ (0.76 mm) in diameter. It is ideal for bending wires from .012″ to .030″.
Q: How does the dual-beak design of 139 Bird Beak Pliers improve wire forming?
The combination of a 1.0 mm round conical beak and an opposing flat pyramidal beak allows clinicians to form both smooth circular loops and precise 90-degree right-angle bends using a single instrument, eliminating frequent plier changes.
Q: What is the validated sterilization protocol for Bird Beak Pliers 139?
Bird Beak Pliers 139 is fully reusable and autoclavable per validated CDC Guidelines and ISO 17664-1 standards. Its AISI 440A German stainless steel construction with validated passivation resists corrosion and joint binding during standard 134°C steam autoclave cycles.
